Marine Exhaust Gas Cleaning System

General Layout


Gas Cleaning13


RETROFIT SERVICE FOR EGCS SYSTEMS

General Project Time Line
Prompt and accurate service in retrofitting


Exhaust Gas Cleaning Systems SOx Scrubber for ships with the total engineering solution with its local technology partners.

Service Scope


Option 1

EGCS Equipment supply + Commissioning



Option 2
(Engineeering Solution)

Onboard survey+ Basic design+ Detailed Engineering +ECS Supply+ Installation Supervision + Commissioning



Option 3
(Turn key Solution)

Onboard survey + Design + ECS & Installation material supply + Installation & Supervision + Commissioning



Service Process- 6 weeks for Survey report + 40 weeks after Contract signing




Questionnaire
Kick-off meeting
Tritech Engineers

3DScan+Modelling
Onboard survey
Tritech Engineers

Basic drawings
Pre-engineering
Tritech Engineers

Contract
Owner +
EGCS-OEM

Design EGCS-OEM

Drawingapproval
by owner & Class.
EGCS-OEM



Commissioning
& Onboard test
EGCS- OEM & Class

Installation
& Supervision
Shipyard/OEM

Shipment
EGCS- OEM

Manufacturing &
Installation material
EGCS-OEM/shipyard

Installation material
purchase order
OEM/shipyard

Submittal
of drawing
OEM/Owners

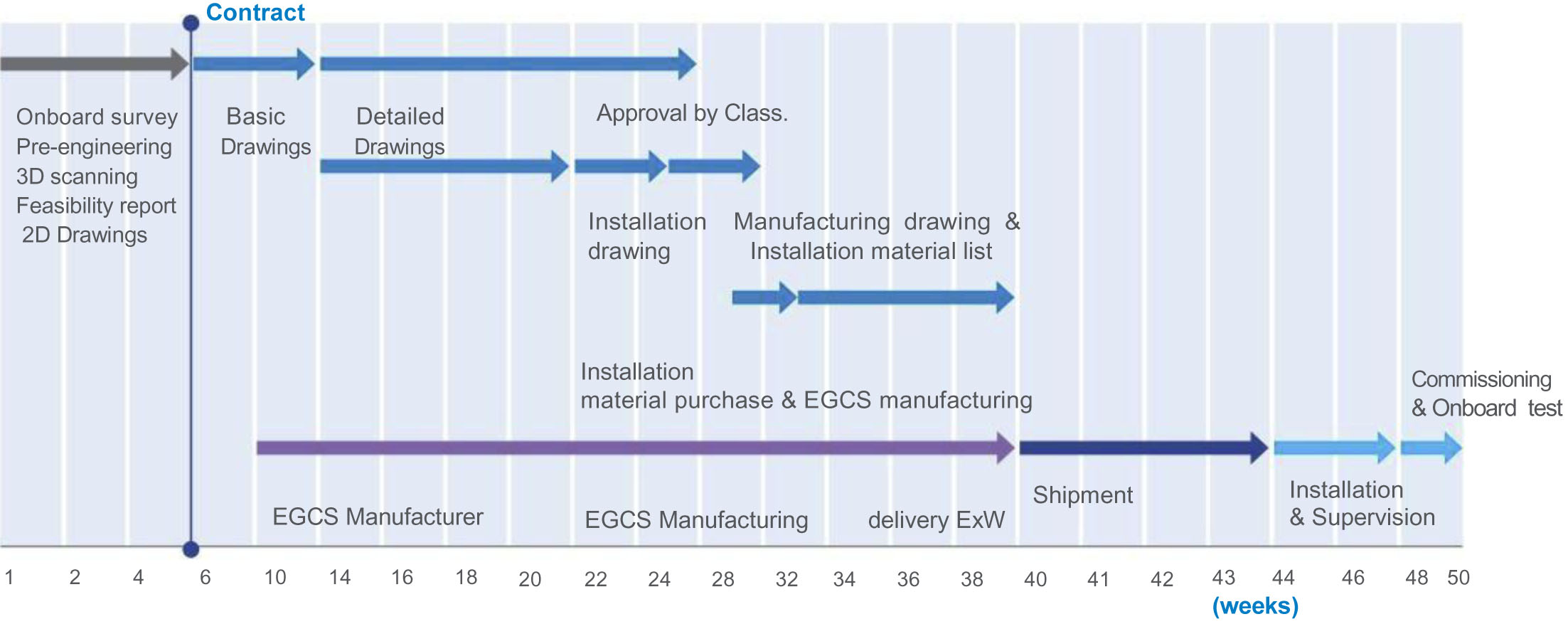

Service Schedule (Standard time table) : 40 weeks- 3D scanning to shipment:

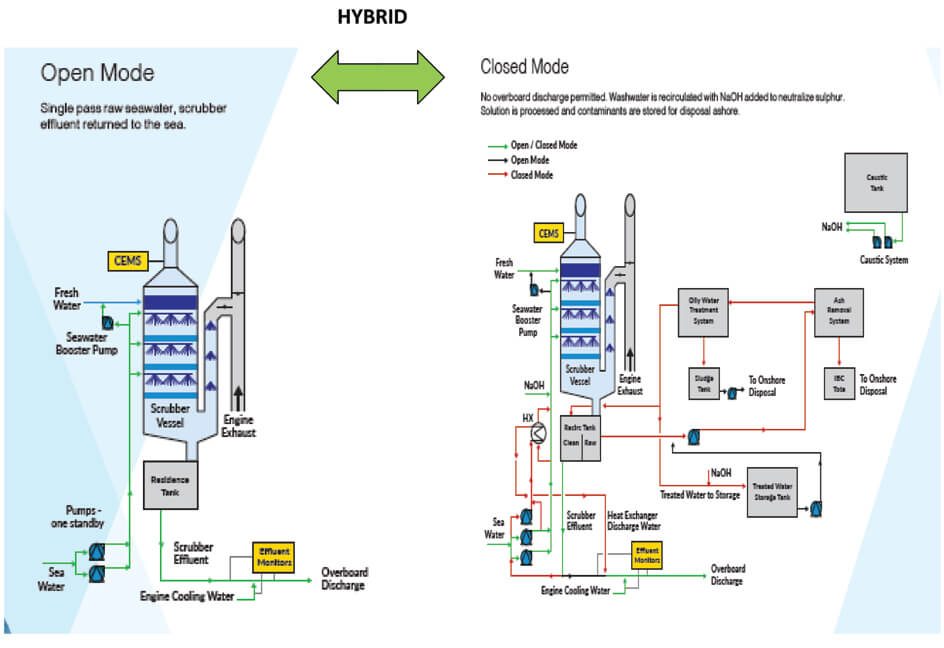

Gas Cleaning1


Exhaust Gas Cleaning System (EGCS) Installation

Gas Cleaning2


TYPES OF EGCS INSTALLATIONS METHOD 1

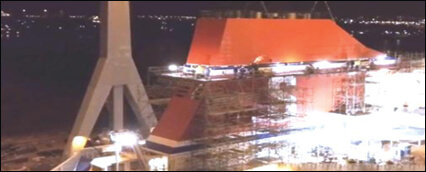

EXHAUST GAS SCRUBBER IN LINE INSTALLATION BUILT INTO PREFRABRICATED MODULAR SECTION OF FUNNEL CASING

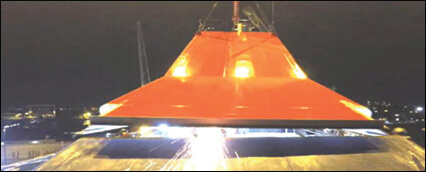

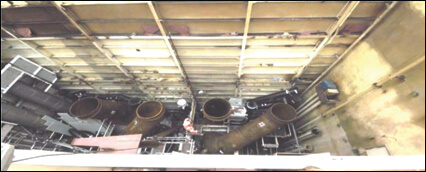

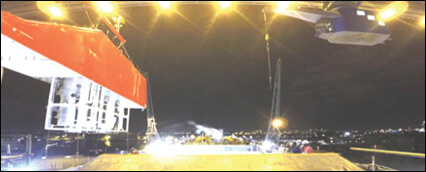

Gas Cleaning3          Gas Cleaning4

Gas Cleaning5          Gas Cleaning6

Gas Cleaning7          Gas Cleaning8

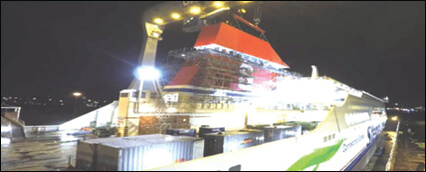

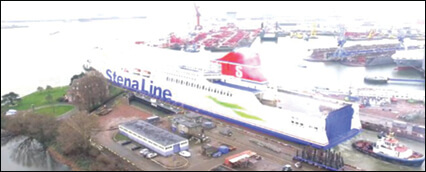

NOTE: VESSEL SAILS OUT OF SHIP REPAIR YARD AFTER COMPLETION OF DRYDOCK REPAIRS AND EGCS-SOX SCRUBBER INSTALLATION IN 12 DAYS




TYPES OF EGCS INSTALLATIONS METHOD 2

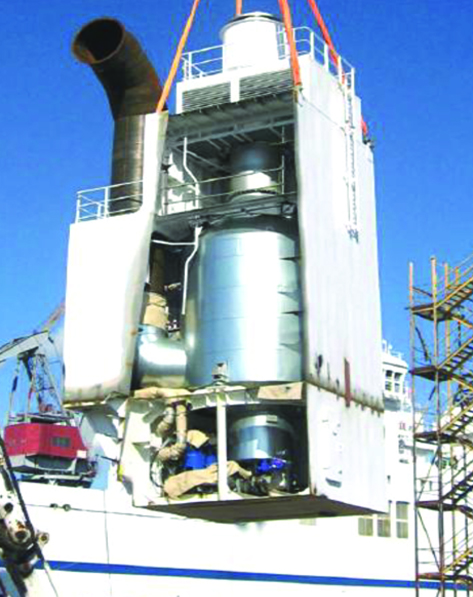

INSTALLTION OF SINGLE SCRUBBER UNIT WITH EXHUAST GAS BYPASS PRE-INSTALLED
IN NEWLY FABRICATED FUNNEL CASING COMPLETE (OLD FUNNEL CASING CROPPED OUT)


Gas_Cleaning9


TYPES OF EGCS INSTALLATIONS METHOD 3

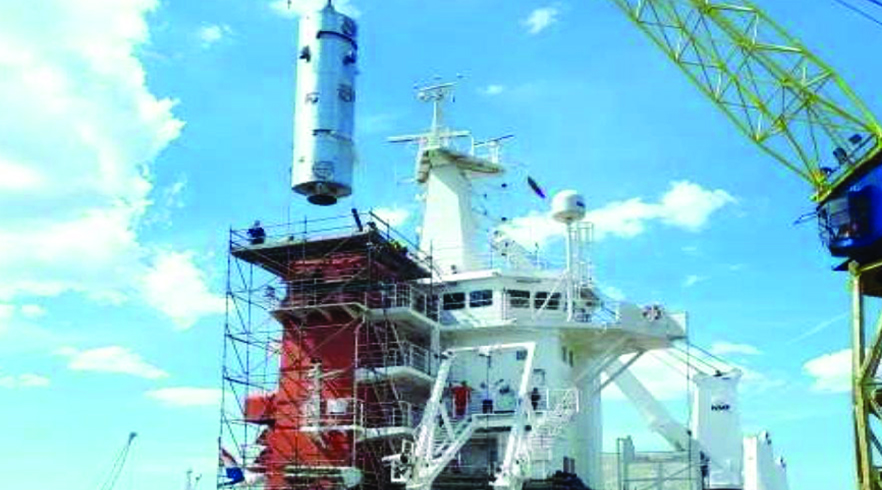

INSTALLTION OF IN LINE SINGLE SCRUBBER UNIT IN MODIFIED EXISTING FUNNEL CASING


Gas_Cleaning-10


TYPES OF EGCS INSTALLATIONS METHOD 4

OUT OF LINE (OUTSIDE EXISTING FUNNEL CASING)

PRE-FABRICATED EXHAUST GAS SCRUBBER OUT OF LINE MODULAR SECTION FITTED OUTSIDE EXISTING FUNNEL CASING


Gas_Cleaning11

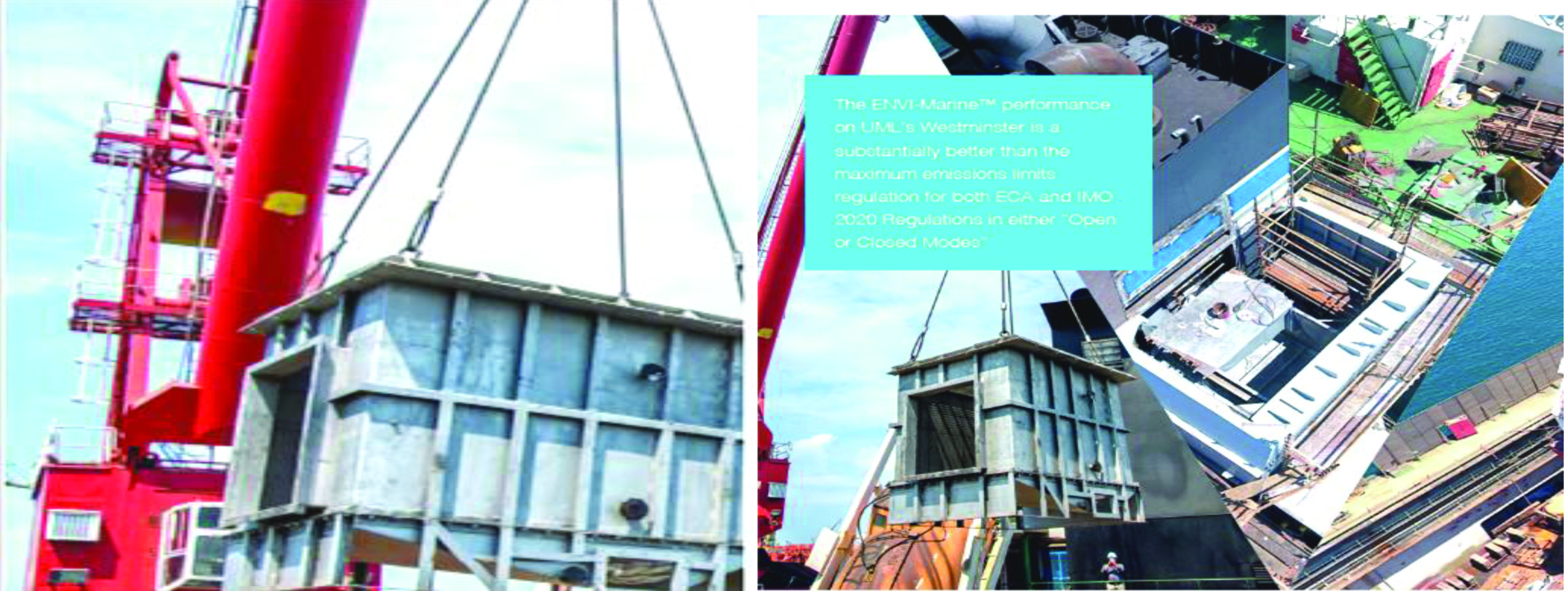

PRE-FABRICATED EXTERNAL CASING FOR EXHAUST GAS SCRUBBER LIFTED INTO POISTION

Gas_Cleaning12

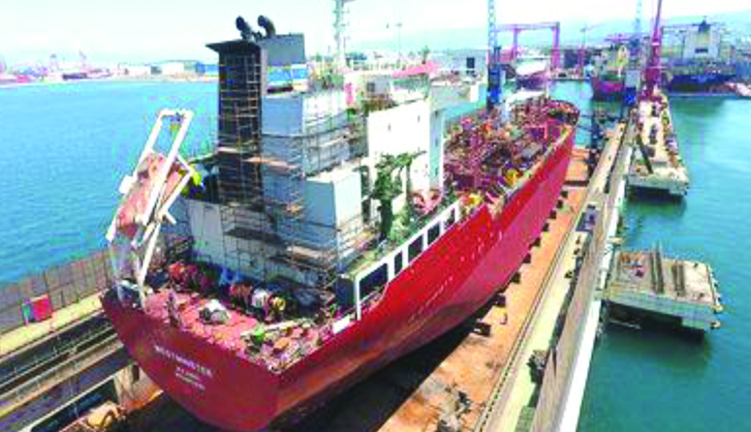

RECTANGULAR EXTERNAL EXHAUST GAS SCRUBBER UNIT INSTALLED IN POSITION ON BOARD VESSEL
